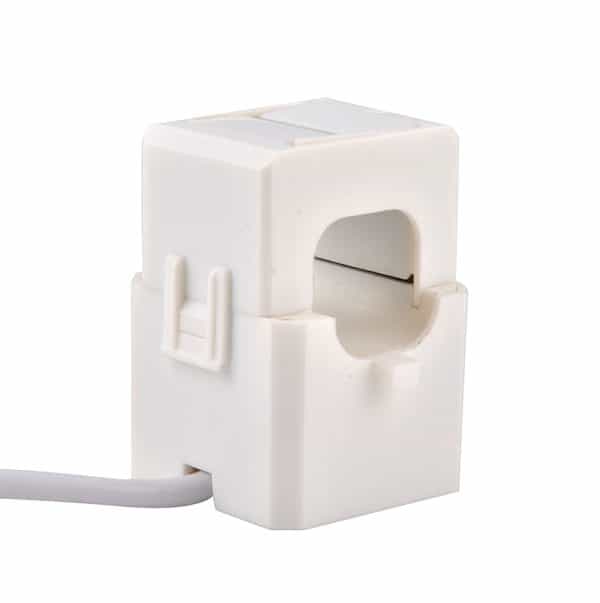

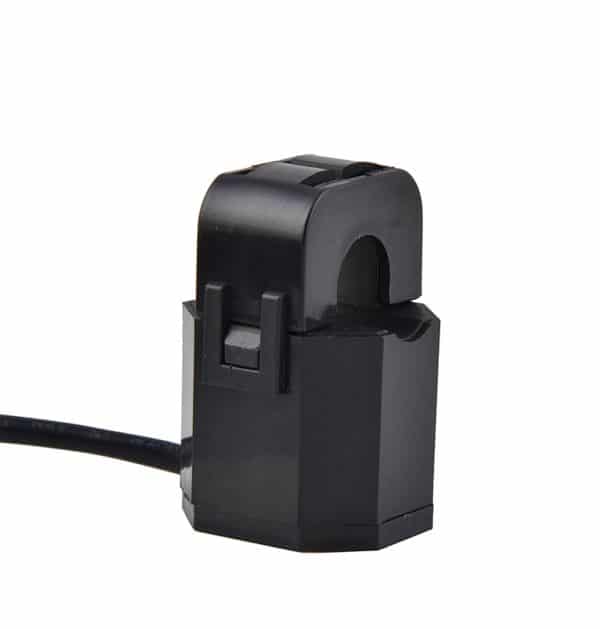

Split Core Current Transformer

313
Category

Split Core Current Sensor

Steady in phase shift over the whole range
Small in size, clamp type, easy to use no need of cutting cable
Various of configuration and output characteristics
Cable leads can be tailor made
RoHS compliant
CE/ ETL / UKCA Certificate

Additional information

Accuracy

0.5~2.0
Rated Primary Current

0~600A
Rated Secondary Current

5mA~5A
Rated Frequency

50/60 Hz
Load Resistance

20Ω
Voltage output

0.333V / 333mV
Ask For Quote

Product Details:

Xiamen ZTC Technology Co., Ltd

The Leading Split Core Current Transformer Manufacturer In China

Provide you tailor made solution with factory direct selling price to meet various energy management project needs.

Get Your Project Started

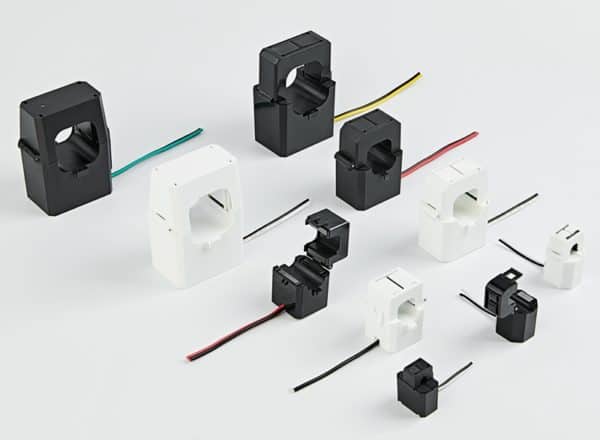

Zentar Split core currrent transformer

Our split core sensor applied on customers successful projects for energy Monitoring

SCT on cabinet

Who Are We?

A RELIABLE SUPPLIER, UP TO 70% GIANT COMPANIES IN ELECTRICAL & ELECTRONIC INDUSTRY USE OUR CURRENT SENSORS

As energy management/monitor/audit are increasingly popular and widely applicated in home and Industry. Split core current transformers, Rogowski Coils, Precision current transformers are being sold well.

With 20 years of experience in current transformer production and supplies, we have been assisting many energy management companies launch their smart energy monitoring system in Europe and U.S. market many years.

Tell Us What You Need

Split core current transformer structural characteristics and working principle

Electronic Current Transformers in Digital Substations and Smart Grids

With the advancement of digital substations and smart grids, electronic current transformers (CTs) are increasingly used for measurement, protection, and monitoring within power systems. The primary function of a current transformer is to convert large primary-side currents into smaller, measurable secondary-side currents. It’s crucial to note that the secondary side of the CT should never be open-circuited, as its operation is based on the principle of electromagnetic induction.

Types of Current Transformers

  • High Voltage: Used for systems with voltages above 10KV.
  • Medium Voltage: Typically used at 10KV.
  • Low Voltage: Applied in systems with 1KV or lower.

Split Core Current Transformers (SCTs)

  • Primary Use: SCTs are mainly used in low voltage applications, such as low-voltage power distribution cabinets or overhead lines.
  • Design Considerations:
    • SCTs require opening and closing, limiting their ability to maintain effective sealing and insulation.
    • In specific cases, SCTs can be used at 10KV if the primary current carrier is a well-insulated cable structure.
    • However, due to the close proximity of the SCT’s opening and closing parts to bare busbars, which lack effective isolation and safety distance, SCTs are generally restricted to low-voltage applications when installed on busbars.

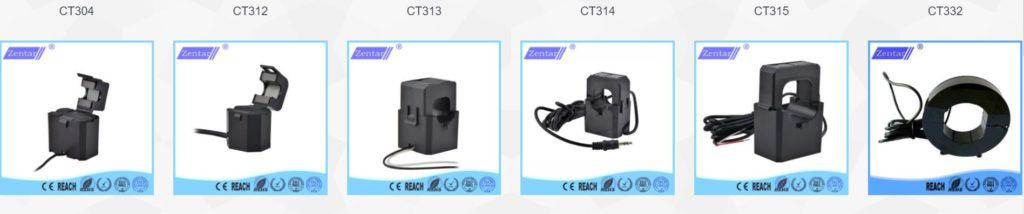

SCT

ItemMax Primary
Current(A)		Turns RatioLinearityLoad resistance ΩFrequency HzDimensions (mm)
Click PN For DetailsWindowsIDHT
CT31280500~5000:10.5~3%2050/6025*27.51042.5
CT313200500~5000:10.5~3%2050/6022.2*32.51643.5
CT314250500~5000:10.5~3%2050/6034*462466
CT30420500~5000:10.5~3%2050/6016*26.4632
CT315400500~5000:10.5~3%2050/6040.5*483684.8
CT332480500~5000:10.5~3%1050/6095*964596

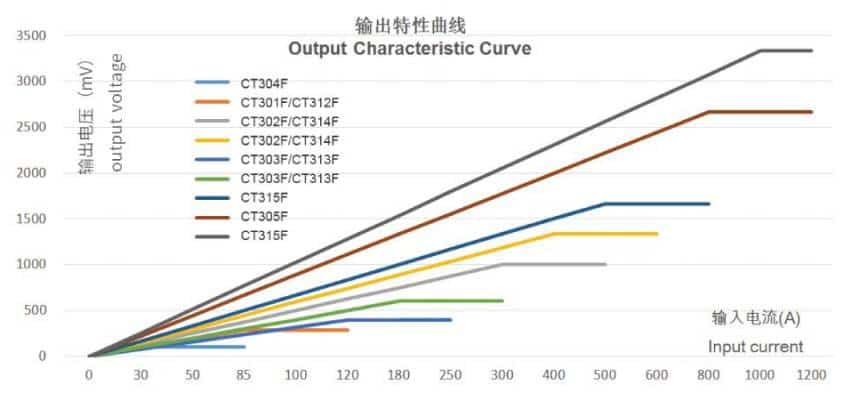

Electrical Characteristic Curve

electrical curve

Open-Ended Low-Voltage Current Transformer

The working principle of an open-ended low-voltage current transformer involves the primary winding being connected in series with the line under test. The primary current (Ip) is transformed into a secondary current (Is), which can typically be 5 A, 1 A, or as low as 10 mA, depending on the number of secondary turns in the transformer and the impedance of the secondary circuit and connecting wires.

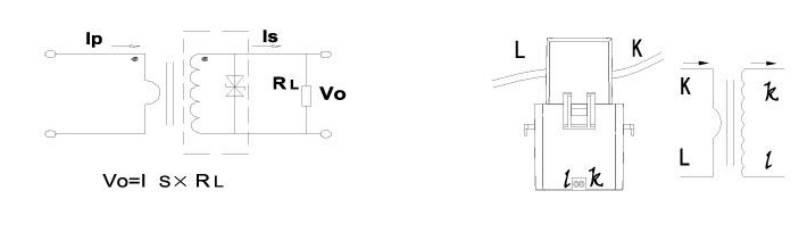

Circuit connection diagram

Circuit connection diagram

Design: The ZTC series features a compact, split-core design that is simple to install, making it ideal for metering applications.

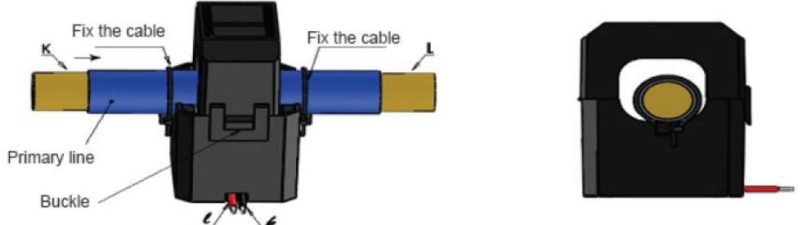

Installation diagram

Installation diagram

Application: These transformers are perfect for distributed measurement systems and can be retrofitted into existing installations without the need to disconnect or reconnect wiring, ensuring minimal disruption.

Compliance: All our split-core sensors meet CE, ETL, and UKCA certifications, facilitating market expansion in the US and Europe.
Materials: We use only RoHS-compliant materials, ensuring our products meet high environmental and safety standards.
