Zero phase current transformer

Category Electrical Safety Tag PCB Mounting

High sensitivity and close to zero load shift
Excellent characteristics in temperature and balance
Small change of output voltage after large DC impulse
A variety of configuration and output characteristics.

Additional information

Rated Primary Current	30A
DC Resistance at 25℃	36±5Ω
Dielectric Withstanding	2500Vrms
Output Voltage Vo	60-90mV

Product Details:

Zero Phase Current Transformer For Electrical Safety

When a current exceeding 30 mA passes through the human body the individual will be at serious risk of a fatal electric shock if the current is not interrupted in a timely manner.

Besides, with the increasing ratio of electrical fire to fire, electrical fire has badly threatened people’s life and property security.

Electrical safety devices that shuts off an electric power circuit when it detects that current is flowing along an unintended path, such as through water or a person.

Our zero phase current transformer applied on customers successful projects for EV charging device，GFCI, RCD preventing from electric shock.

Why Choose us?

A RELIABLE SUPPLIER, UP TO 70% GIANT COMPANIES IN ELECTRICAL & ELECTRONIC INDUSTRY USE OUR ZERO PHASE CURRENT SENSORS

As EV charging devices are increasingly popular and widely applicated in home and Industry，zero phase current transformers are playing more and more important role in EV charging modules and electrical safety products.

With 20 years of experience in current transformer production and supplies, we have been assisting many companies, who specialize in energy management, electrical safety products bussiness, launching their EV charging devices in Europe and U.S. market.

Xiamen ZTC Technology Co., Ltd

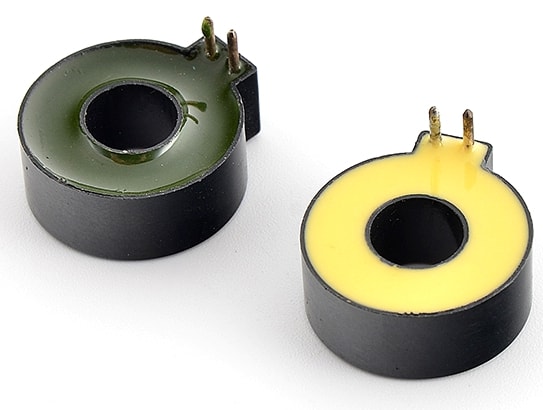

Lead Wire Zero Phase Current Transformer

Item	Rated Current(A)	Output Voltage Vo(mv)	Test Conditions	Over Leakage Characterstics	Temperature Characteristics -35~80℃	Dimensions (mm)
Click PN For Details						ID	OD	HT
ZCT201	30	4-5.1	lin=10mA RL=510	-10%~0%	10%Max	5.9	16	6.5
ZCT202	30	5.1-6	lin=8mA RL=750	-10%~0%	10%Max	5.8	15.2	6.1
ZCT203	50	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	9.2	21	7.3
ZCT204	30	12-15	lin=22.5mA RL=1k	-10%~0%	10%Max	9.8	20.6	6.5
ZCT205	30	12.5-15.5	lin=8mA RL=4.7k	-10%~0%	10%Max	9.3	21.3	7.2
ZCT206	50	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	12.3	26	10
ZCT207	30	7.5-8.5	lin=25mA RL=1k	-10%~0%	10%Max	15.4	29.8	10
ZCT208	60	10.2-12.5	lin=20mA RL=680	-10%~0%	10%Max	7.2	19.4	7.7
ZCT209	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	7	17.2	7
ZCT210	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	6.8	16.9	7.9
ZCT211	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	10.6	25.4	8
ZCT212	60	10.2-12.5	lin=20mA RL=680	-10%~0%	10%Max	11	23.5	8
ZCT213	60	≥300	lin=25mA RL=1k	-10%~0%	10%Max	9.4	23.8	12.7
ZCT218	60	10.2–12.5	lin=25mA RL=680	-10%~0%	10%Max	7.5	18.9	7.6
ZCT220	60	≥300	lin=25mA RL=47k	-10%~0%	10%Max	10.1	24	11.5
ZCT225	60	≥300	lin=25mA RL=47k	-10%~0%	10%Max	10.9	25.5	9
ZCT401	100	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	15	29.2	10
ZCT402	100	6.3-7.5	lin=20mA RL=370	-10%~0%	10%Max	17.5	35.9	8.8
ZCT403	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	29	51	12
ZCT404	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	32	55.6	12
ZCT405	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	42	80*69	20
ZCT406	630	17-21	lin=25mA,RL=1k	-10%~0%	10%Max	51.3	84	26
ZCT407	800	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	51	96*89	23
ZCT408	100	125-150	lin=500mA,RL=150	-10%~0%	10%Max	19	36	11.5
ZCT409	225	125-150	lin=500mA,RL=150	-10%~0%	10%Max	24	42	12
ZCT410	400	125-150	lin=500mA,RL=150	-10%~0%	10%Max	43	90*74	16
ZCT411	800	120-151	lin=500mA,RL=150	-10%~0%	10%Max	53	96*89	23

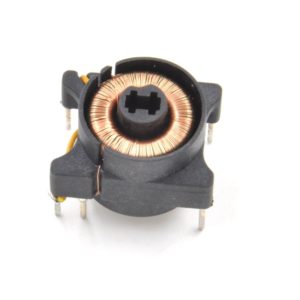

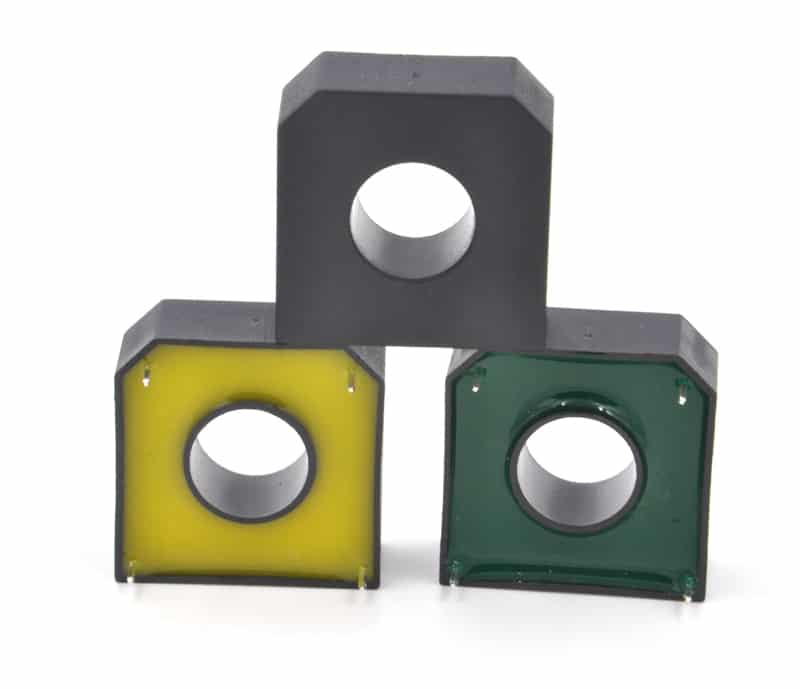

PCB Mounting Zero Phase Current Transformer

Item	Rated Current(A)	Output Voltage Vo(mv)	Test Conditions	Over Leakage Characterstics	Temperature Characteristics -35℃~80℃	Dimensions (mm)
Click PN For Details						ID	OD	HT
ZCT501	30	8-14	lin=30mA,RL=1kΩ¸	-10%~0%	10%Max	6.8	17.3	7
ZCT502	30	6.3-7.3	lin=22.5mA RL=1kΩ¸	-10%~0%	10%Max	6.8	18.2	7.2
ZCT503	20	7.5-10.5	lin=11.25mA RL=1kΩ¸	-10%~0%	10%Max	5.5	15.4	6
ZCT505	30	17-21	lin=22.5mA RL=1kΩ¸	-10%~0%	10%Max	9.3	20.9	7.2
ZCT506	30	17-21	lin=22.5mA RL=1kΩ¸	-10%~0%	10%Max	5	17	9.5
ZCT507	30	25-30.5	lin=20mA RL=1kΩ¸	-10%~0%	10%Max	6	18.6	10
ZCT511	20	4.8-5.1	lin=20mA RL=1kΩ¸	-10%~0%	10%Max	6.8	17.5	7.8
ZCT515	30	3.2-4	lin=25mA RL=330Ω¸	-10%~0%	10%Max	8.1	18	6.5
ZCT516	40	6.3-7.3	lin=22.5mA RL=1kΩ¸	-10%~0%	10%Max	7.1	17	19.1
ZCT519	50	17-22	lin=11mA,RL=2kΩ¸	-10%~0%	10%Max	9	23	8.3
ZCT520	50	20-24	lin=20mA RL=1kΩ¸	-10%~0%	10%Max	12	26.7	11
ZCT526	40	25-30	lin=25mA RL=1kΩ¸	-10%~0%	10%Max	5.8	19.3	7.8
ZCT528	30	7.5-12	lin=30mA,RL=1kΩ¸	-10%~0%	10%Max	9.3	20.9	7.5
ZCT534	40	6.4-7.5	lin=20mA RL=1kΩ¸	-10%~0%	10%Max	6.8	17.4	6.5
ZCT538	30	3.6-3.8	lin=500mA,RL=150Ω¸	-10%~0%	10%Max	5.5	15.4	5.3
ZCT541	50	12-13	lin=25mA RL=330Ω¸	-10%~0%	10%Max	9	22	8.3
ZCT543	20	3.5-4.5	lin=20mA,RL=370Ω¸	-10%~0%	10%Max	–	–	6.4
ZCT547	30	15-18	lin=500mA,RL=150Ω¸	-10%~0%	10%Max	–	–	17
ZCT548	30	13.2-17.8	lin=11mA,RL=360Ω¸	-10%~0%	10%Max	19	5	7.5

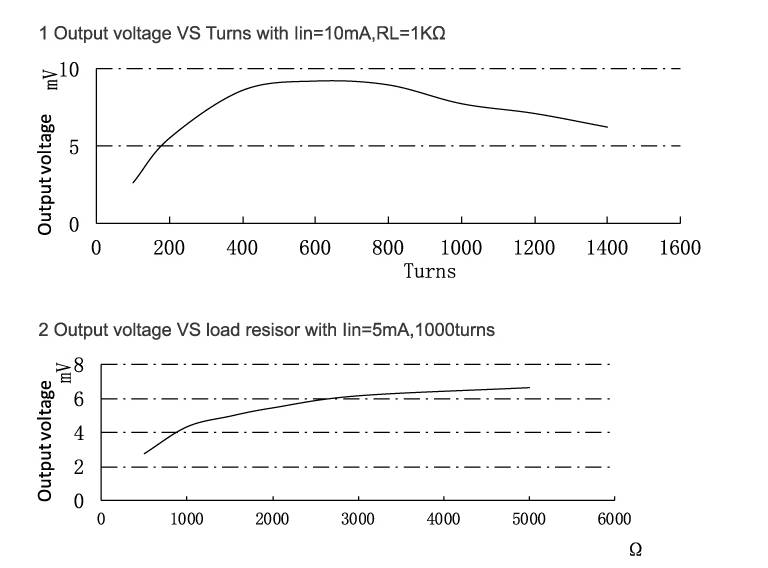

Output Voltage And Turns / Resistor Graph

How can we help you?

As a high-tech orientation enterprise and industrial manufacturing entity, we dedicate provide our valued customers from design concept to final products delivery.

QUALITY CONTROL

Incoming Inspection

In-process Inspection

Outgoing Inspection

Samples & Orders Lead Time

Tailor Made Lead Time

Lead times vary with special materials and necessary tooling. Samples are produced post-tooling completion.

Shipping TIme

Shipping time varies by method: 2-5 days for courier, 3-7 days for air, and 7-40 days for sea. We select the optimal shipping based on your needs.

Regular Item Lead Time

In-stock items ship in 1-2 days for testing. Otherwise, sample preparation takes 3-4 days.

Production Lead Time

Lead times depend on material availability, production schedules, and order size. Expect 1-2 weeks for materials and 2-3 weeks for production.

Our Amazing Clients:

What People Say?

"As a procument manager in energy management company, we value a supplier provide a steay supply chain and good quality current transformer. Honestly, cooperate with Xiamen ZTC Technology is wise choise."

Tom Sendler

Technician

"When I have someting need to be assisted in projects,I can get fast technical respond from Xiamen ZTC Technology everytime.Good after-sales service from their team."

Grant Gabriel

Procument manager

"ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. I love it."

Dave Jan

Electrican

WHO IS THE NEXT ONE? IT'S YOU! We are expected to know what you're gonna say!

Valued Customers

Our Story

Founded in 1993, Xiamen ZTC Technology Co., Ltd (Zentar®) is situated in the bustling harbor city of Xiamen, Southeast China, a mere three hours from Shenzhen by high-speed train. As a premier manufacturer of current transformers, we serve the electrical safety and measurement sectors with distinction. Over three decades, we’ve grown to employ approximately 250 skilled workers, producing in excess of 2,000 bespoke products tailored to fulfill the diverse requirements of our clientele.

We specialize in providing top-quality current transformers and offering our expertise to assist clients in developing and launching projects related to EV charging modules, Ground Fault Circuit Interrupters (GFCI), Residual Current Devices (RCD), and wireless energy monitors, cementing our position as industry leaders in innovation and quality.

Our commitment to staying at the forefront of technology drives us to continually engage in the research and development of cutting-edge products and explore new market opportunities.

We pride ourself on being an innovation-driven entity and an IATF16949-certified factory. We leverage state-of-the-art automated equipment and machinery to boost production efficiency, ensuring we meet the stringent quality standards demanded by the automotive industry and beyond.

ISO 9001 14001 IATF16949 Factory
Automated Production
Industry And Technical standards Maker
Industry-University-Research Collaboration

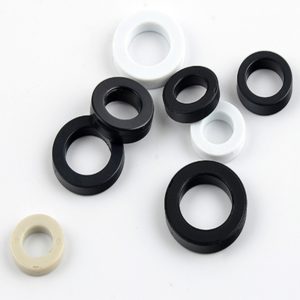

Leading Supplier Of Nickel alloy Ring Cores Used In GFCI And RCD
