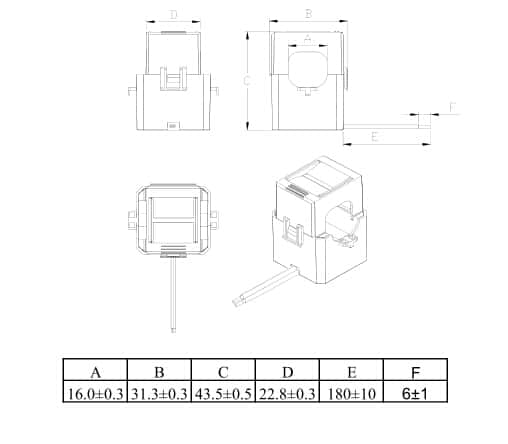

CT313 split core current transformer manufacturers
Electrical Specification
(Customized is available)
| Frequency band : | 50Hz~60Hz |
| Dielectric strenght: | 3000Vrms/2 seconds between Sec. / Pri. |
| Rated current: | 50A 50Hz |
| Max current: | 120A 50Hz |
| Rated load resistor: | 10Ω |
| Saturation current: | ≥120A 50Hz |
| DCR | 375±10%Ω |
| Inductance | ≥15H (@50HZ,1V) |
| Linearity error | 1%(5-120A) |
Q: If We require a split core Current Transformer (CT) which is able to detect upto 100~150 Amps. Then connecting with our own device via RJ45 with Bluetooth or Wifi – are you able to provide connectivity as such?
A: Yes, RJ45 connector is available to add to our CT Clamp. Actually, the conectors can be tailor made to meet customers need. You can let me know the cable SPEC you need, like AWG, UL No. connector type.
About Wifi or Bluetooth connectivity, we can assist you develop and lauch your our own design plastic enclosure for the device. Then our current clamp can be a components connected to this device.
| Item | Max Primary Current(A) | Turns Ratio | Linearity | Load resistance Ω | Frequency Hz | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Click PN For Details | Windows | ID | HT | |||||
CT312 | 80 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 25*27.5 | 10 | 42.5 |
CT313 | 200 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 22.2*32.5 | 16 | 43.5 |
CT314 | 250 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 34*46 | 24 | 66 |
CT304 | 20 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 16*26.4 | 6 | 32 |
CT315 | 400 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 40.5*48 | 36 | 84.8 |
CT332 | 480 | 500~5000:1 | 0.5~3% | 10 | 50/60 | 95*96 | 45 | 96 |
