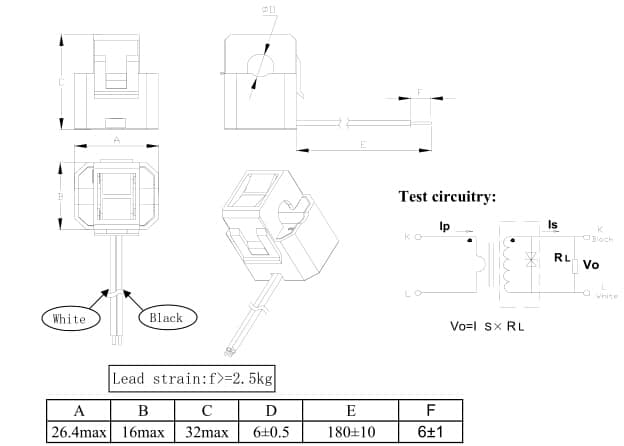

CT304 Split core current transformer
Electrical Specification
| Frequency band : | 50Hz~60Hz |
| Dielectric strenght: | 3000Vrms/2 seconds between Sec. / Pri. |
| Rated current: | 30A 50Hz |
| Max current: | @20Ω/40A 50Hz |
| Rated load resistor: | @20Ω |
| DCR: | 460±10%Ω |
| Output Voltage Vo: | 0.03 |
| Max error(5-80A range): | Linearity error:≤1% |
| Clamp times: | ≥500 time |
| Operate temperature: | `-10～50℃ 0～90%RH |
| store temperature: | `-30～80℃ 0～90%RH |
Split core current sensor design is used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.
ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. They are ideal for distributed measurement systems and can be retro-fitted into existing installations and non-interruptible equipment as there is no requirement for disconnection and re-connection of wiring.
| Item | Max Primary Current(A) | Turns Ratio | Linearity | Load resistance Ω | Frequency Hz | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Click PN For Details | Windows | ID | HT | |||||
CT312 | 80 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 25*27.5 | 10 | 42.5 |
CT313 | 200 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 22.2*32.5 | 16 | 43.5 |
CT314 | 250 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 34*46 | 24 | 66 |
CT304 | 20 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 16*26.4 | 6 | 32 |
CT315 | 400 | 500~5000:1 | 0.5~3% | 20 | 50/60 | 40.5*48 | 36 | 84.8 |
CT332 | 480 | 500~5000:1 | 0.5~3% | 10 | 50/60 | 95*96 | 45 | 96 |
