ZCT206 Lead Wire Type zero sequence current transformer principle
Electrical Specification
(Customized is available)
| Rated Current | 50A |
| DC Resistance at 25℃ | 58±5Ω |
| Dielectric Withstanding Voltage(Hi-pot) | 2500Vrms |
| Output Voltage Vo | 7.5-8.5mV |
The working principle of the zero-sequence current transformer is the same as that of the current transformer. It consists of a secondary coil, an iron core, an insulating support and an outlet terminal. It is a differential current filter. Its secondary side reflects the zero-sequence current of the primary system. .
This current transformer surrounds the three-phase conductor (busbar or cable) with an iron core, and the secondary winding is wound around the same closed iron core.
Under normal circumstances, due to the symmetry of the three-phase current on the primary side, its vector sum is zero, no magnetic flux is generated in the iron core, and there is no current in the secondary winding. When a single-phase ground fault occurs in the system, the sum of the three-phase currents is not zero (equal to 3 times the zero-sequence current), so a zero-sequence magnetic flux appears in the iron core, and the sting induces an electromotive force in the secondary winding, Secondary current flows through the relay to actuate it.
| Item | Rated Current(A) | Output Voltage Vo(mv) | Test Conditions | Over Leakage Characterstics | Temperature Characteristics -35~80℃ | Dimensions (mm) |
||
|---|---|---|---|---|---|---|---|---|
| Click PN For Details | ID | OD | HT | |||||
| ZCT201 | 30 | 4-5.1 | lin=10mA RL=510 | -10%~0% | 10%Max | 5.9 | 16 | 6.5 |
| ZCT202 | 30 | 5.1-6 | lin=8mA RL=750 | -10%~0% | 10%Max | 5.8 | 15.2 | 6.1 |
| ZCT203 | 50 | 17-21 | lin=22.5mA RL=1k | -10%~0% | 10%Max | 9.2 | 21 | 7.3 |
| ZCT204 | 30 | 12-15 | lin=22.5mA RL=1k | -10%~0% | 10%Max | 9.8 | 20.6 | 6.5 |
| ZCT205 | 30 | 12.5-15.5 | lin=8mA RL=4.7k | -10%~0% | 10%Max | 9.3 | 21.3 | 7.2 |

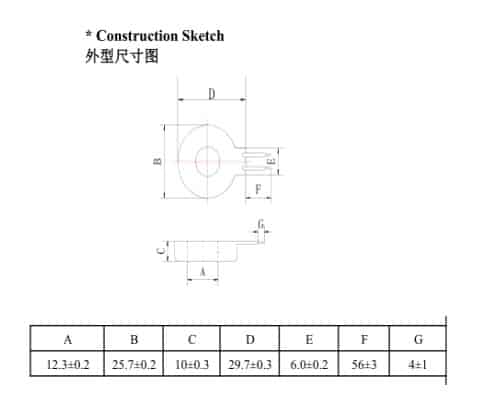

| ZCT206 | 50 | 17-21 | lin=22.5mA RL=1k | -10%~0% | 10%Max | 12.3 | 26 | 10 |
| ZCT207 | 30 | 7.5-8.5 | lin=25mA RL=1k | -10%~0% | 10%Max | 15.4 | 29.8 | 10 |
| ZCT208 | 60 | 10.2-12.5 | lin=20mA RL=680 | -10%~0% | 10%Max | 7.2 | 19.4 | 7.7 |
| ZCT209 | 50 | 8-11.2 | lin=11.25mA RL=1k | -10%~0% | 10%Max | 7 | 17.2 | 7 |
| ZCT210 | 50 | 8-11.2 | lin=11.25mA RL=1k | -10%~0% | 10%Max | 6.8 | 16.9 | 7.9 |
| ZCT211 | 50 | 8-11.2 | lin=11.25mA RL=1k | -10%~0% | 10%Max | 10.6 | 25.4 | 8 |
| ZCT212 | 60 | 10.2-12.5 | lin=20mA RL=680 | -10%~0% | 10%Max | 11 | 23.5 | 8 |
| ZCT213 | 60 | ≥300 | lin=25mA RL=1k | -10%~0% | 10%Max | 9.4 | 23.8 | 12.7 |
| ZCT218 | 60 | 10.2--12.5 | lin=25mA RL=680 | -10%~0% | 10%Max | 7.5 | 18.9 | 7.6 |
| ZCT220 | 60 | ≥300 | lin=25mA RL=47k | -10%~0% | 10%Max | 10.1 | 24 | 11.5 |
| ZCT225 | 60 | ≥300 | lin=25mA RL=47k | -10%~0% | 10%Max | 10.9 | 25.5 | 9 |
| ZCT401 | 100 | 17-21 | lin=22.5mA RL=1k | -10%~0% | 10%Max | 15 | 29.2 | 10 |
| ZCT402 | 100 | 6.3-7.5 | lin=20mA RL=370 | -10%~0% | 10%Max | 17.5 | 35.9 | 8.8 |
| ZCT403 | 250 | 17-21 | lin=22.5mA,RL=1k | -10%~0% | 10%Max | 29 | 51 | 12 |
| ZCT404 | 250 | 17-21 | lin=22.5mA,RL=1k | -10%~0% | 10%Max | 32 | 55.6 | 12 |
| ZCT405 | 250 | 17-21 | lin=22.5mA,RL=1k | -10%~0% | 10%Max | 42 | 80*69 | 20 |
| ZCT406 | 630 | 17-21 | lin=25mA,RL=1k | -10%~0% | 10%Max | 51.3 | 84 | 26 |
| ZCT407 | 800 | 17-21 | lin=22.5mA,RL=1k | -10%~0% | 10%Max | 51 | 96*89 | 23 |
| ZCT408 | 100 | 125-150 | lin=500mA,RL=150 | -10%~0% | 10%Max | 19 | 36 | 11.5 |
| ZCT409 | 225 | 125-150 | lin=500mA,RL=150 | -10%~0% | 10%Max | 24 | 42 | 12 |
| ZCT410 | 400 | 125-150 | lin=500mA,RL=150 | -10%~0% | 10%Max | 43 | 90*74 | 16 |
| ZCT411 | 800 | 120-151 | lin=500mA,RL=150 | -10%~0% | 10%Max | 53 | 96*89 | 23 |
