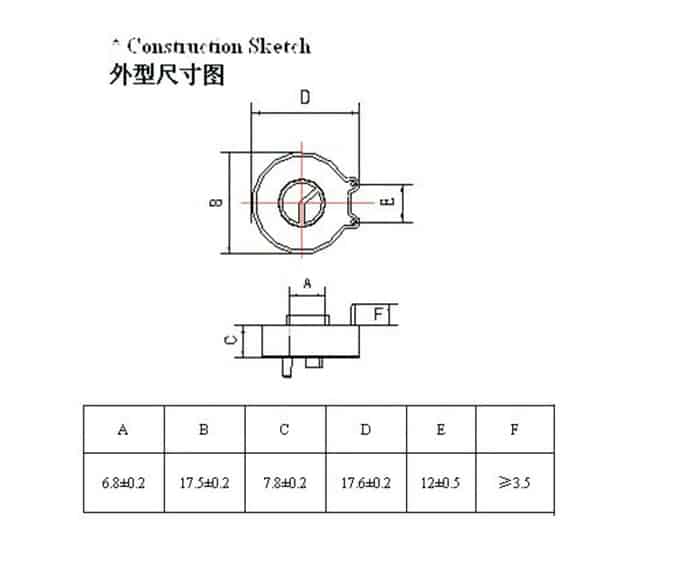

ZCT511 instrument current transformer with good price
Electrical Specification
(Customized is available)
| Rated Current | 20A |
| DC Resistance at 25℃ | 31±3Ω |
| Dielectric Withstanding Voltage(Hi-pot) | 2500Vrms |
| Output Voltage Vo | 4.8~5.1mV |
Current Transformers are generally used in the maintenance process of high-current lines. After applying current sensor, the ultra-high current can be converted into a low voltage that is not harmful to us, so that we can carry out safety measurements.
The key role of curent transformer is to reduce the large current of the current loop by a certain proportion to the value that is conducive to accurate measurement of the meter and relay, and then use the meter and relay connected in series in its secondary winding circuit. The meter can be done Delicate and precise. The secondary current of a common current transformer is 5A, so the connection between the secondary side and the load can use a small-section transmission line or control cable.
| Item | Rated Current(A) | Output Voltage Vo(mv) | Test Conditions | Over Leakage Characterstics | Temperature Characteristics -35℃~80℃ | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Click PN For Details | ID | OD | HT | |||||
| ZCT501 | 30 | 8-14 | lin=30mA,RL=1kΩ¸ | -10%~0% | 10%Max | 6.8 | 17.3 | 7 |
| ZCT502 | 30 | 6.3-7.3 | lin=22.5mA RL=1kΩ¸ | -10%~0% | 10%Max | 6.8 | 18.2 | 7.2 |
| ZCT503 | 20 | 7.5-10.5 | lin=11.25mA RL=1kΩ¸ | -10%~0% | 10%Max | 5.5 | 15.4 | 6 |
| ZCT505 | 30 | 17-21 | lin=22.5mA RL=1kΩ¸ | -10%~0% | 10%Max | 9.3 | 20.9 | 7.2 |
| ZCT506 | 30 | 17-21 | lin=22.5mA RL=1kΩ¸ | -10%~0% | 10%Max | 5 | 17 | 9.5 |
| ZCT507 | 30 | 25-30.5 | lin=20mA RL=1kΩ¸ | -10%~0% | 10%Max | 6 | 18.6 | 10 |
| ZCT511 | 20 | 4.8-5.1 | lin=20mA RL=1kΩ¸ | -10%~0% | 10%Max | 6.8 | 17.5 | 7.8 |
| ZCT515 | 30 | 3.2-4 | lin=25mA RL=330Ω¸ | -10%~0% | 10%Max | 8.1 | 18 | 6.5 |
| ZCT516 | 40 | 6.3-7.3 | lin=22.5mA RL=1kΩ¸ | -10%~0% | 10%Max | 7.1 | 17 | 19.1 |
| ZCT519 | 50 | 17-22 | lin=11mA,RL=2kΩ¸ | -10%~0% | 10%Max | 9 | 23 | 8.3 |
| ZCT520 | 50 | 20-24 | lin=20mA RL=1kΩ¸ | -10%~0% | 10%Max | 12 | 26.7 | 11 |
| ZCT526 | 40 | 25-30 | lin=25mA RL=1kΩ¸ | -10%~0% | 10%Max | 5.8 | 19.3 | 7.8 |
| ZCT528 | 30 | 7.5-12 | lin=30mA,RL=1kΩ¸ | -10%~0% | 10%Max | 9.3 | 20.9 | 7.5 |
| ZCT534 | 40 | 6.4-7.5 | lin=20mA RL=1kΩ¸ | -10%~0% | 10%Max | 6.8 | 17.4 | 6.5 |
| ZCT538 | 30 | 3.6-3.8 | lin=500mA,RL=150Ω¸ | -10%~0% | 10%Max | 5.5 | 15.4 | 5.3 |
| ZCT541 | 50 | 12-13 | lin=25mA RL=330Ω¸ | -10%~0% | 10%Max | 9 | 22 | 8.3 |
| ZCT543 | 20 | 3.5-4.5 | lin=20mA,RL=370Ω¸ | -10%~0% | 10%Max | - | - | 6.4 |
| ZCT547 | 30 | 15-18 | lin=500mA,RL=150Ω¸ | -10%~0% | 10%Max | - | - | 17 |
| ZCT548 | 30 | 13.2-17.8 | lin=11mA,RL=360Ω¸ | -10%~0% | 10%Max | 19 | 5 | 7.5 |
