Wireless Energy Monitor

Wi-Fi connectivity

– 802.11 b/g/n

– Channel 1-14@2.4GHz

– Support WEP, WPA/WPA2, WPA/WPA2 PSK (AES) security mechanism

– Support Bluetooth smart distribution network and AP distribution network mode

– Support SmartConfig function (including Android and IOS devices)

– External external antenna

Additional information

Measuring voltage range

100~250V

Rated Primary Current

0~600A

Rated Frequency

50/60 Hz

Accuracy

0.1~2.0

Wireless Connectivity

IEEE 802.11b/g/n 2.4 GHz

Phase

Single phase and 3 phases

Device Power Consumption

Less 5W, 0.1A for WiFi

Product Details:

Wireless Energy Monitor

Home energy monitors are widely used for giving power consumption insights and saving energy usage, monitoring electricity in real time.

Xiamen ZTC Technology is a manufacturer who provide OEM / ODM service of energy monitor HARDWARES ONLY for customers who are intending to launch and develop customized / own brand devices in local market.

If you need hardwards with Apps to use or distribute directly on your local market, we don’t have existing developed device can provide currently.

Regular type contains

  1. 3 phases split core current sensors with WIFI communication module
  2. WiFi @ 2.4 GHz 802.11b/g/n transfer protocol
  3. Supports current, voltage, and power measurement of up to 3 phase lines
  4. Support TCP/UDP network transmission mode
  5. Support Simple Config/Airkiss/usrlink for fast networking configration
  6. The antenna is built-outside on our device. That leads a good signal to prevent electromagnetic shielding.

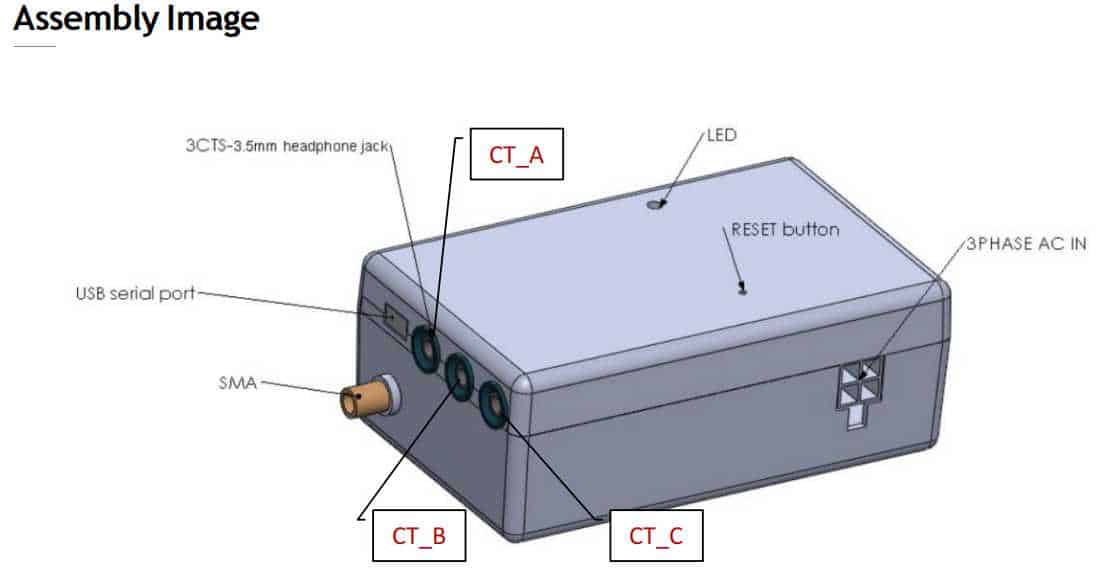

Device Image

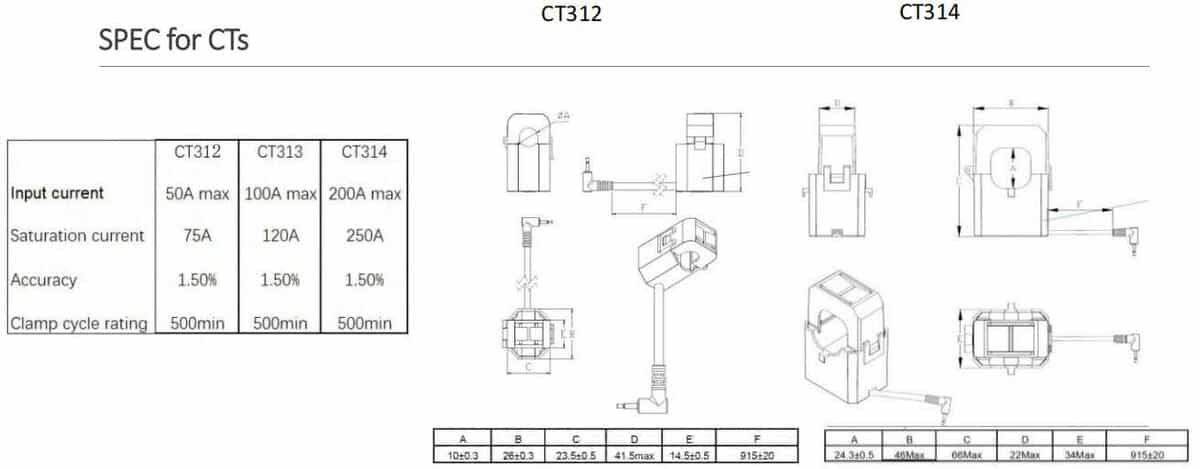

Split Core Current Sensors Specification

ZTC Series of split core current sensors can be used direcly to the device, current range from 5A up to 600A with high accuracy class and linerity 0.5% , can be applied for residential and commercial environment.

If you already have your own customized device, we are also your preferable and realiable current sensors supplier. Our clamp on current transformers are widely soled to Europe market with CE/ UKCA certified, and North Americal with ETL certificate.

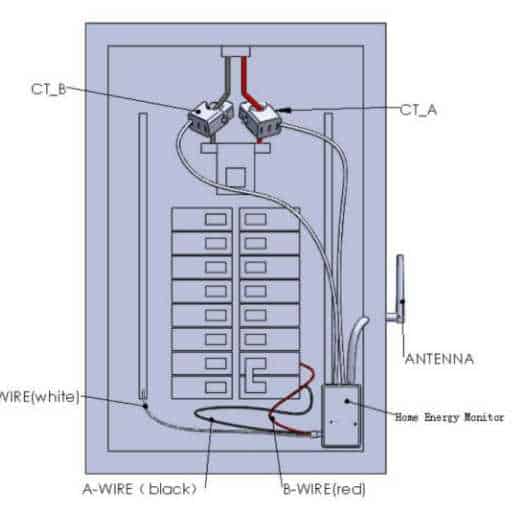

Wiring Diagram

1. Close the main switch

2. Install and fix CT, antenna, and Monitor then connecting wiring as shown in the diagram.

3. After the connection is completed, turn on the main switch, and the device power on.

Note: If you are not familar with electric wiring works, installed by professional electricians is a MUST.



Adapt For Customers’ Designed Apps / Display Pannel Sofewares

Energy-Monitoring-System

Energy management

Energy management



How can we help you?

As a high-tech orientation enterprise and industrial manufacturing entity, we dedicate provide our valued customers from design concept to final products delivery.

Industry Expertise And Professional Advice

We have well educated engineers collaborate with rich experienced technican dedicating to project developing and problem solving. Providing professional advice for split core current sensor, differential current transformer mechanical design, electrical parmeters setting for EV charging solution, energy monitor system application.

High Efficiency And Sufficient Production Capacity

Our plant covers 20,000 square meters holding more than 300 well skilled workers and hundreds winding machines and testing instruments with automated equipments. We are pleasure to meet your requirments at different stages of project, small lot and bulk orders are all available for manufacturing.

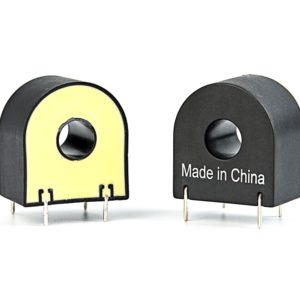

zero phase current sensor
