Rogowski Coils

Category Electric Metering

1. Open-ended and flexible, allowing it to be wrapped around a live conductor without disturbing it
2. High-current Rogowski coils to be calibrated using much smaller reference current
3. No danger of opening the secondary winding
4. Lower construction costs
5. Temperature compensation is simple
6. Smaller than an equivalent rating current transformer.

Additional information

Rated Primary Current	1000~5000A
Rated Frequency	45Hz-600Hz
Output Voltage Vo	0.333mv
Accuracy	1.0~3.0
Dielectric Withstanding	3000Vrms/2 seconds between sec. / outside

Product Details:

Application Scenarios For

Flexible Rogowski Coils

If you need a coil to have the characteristics of real-time current measurement function, fast response speed, and not saturated, apply AC power, especially the measurement of high -frequency large current.

Then Rogowski is a wise choice.

Xiamen ZTC Technology Rogowski coils have been successfully applied to many fields, such as power measurement, equipment monitoring, and detection of leakage current.

Electrical safety: Fault testing for UPS ( uninterruptible power supplies )

The current output of a high-power uninterruptible power supply for emergency backup was measured and monitored during conversion to emergency backup to determine whether there were any discontinuities in the current waveform that could adversely affect the power station equipment.

Energy management: Power management metering

Thanks to its flexible construction, the Rogowski can be easily installed around the conductor under test even if there is only limited space around it.

Power equipment application: tracing earth faults in transmission and distribution systems

When an earth fault is detected in the main output connection of a large generator, the generator is put out of service. When a Rogowski coil is installed, this fault can easily be traced and thus resolved.

Monitoring applications: testing current transformer secondary currents

In some systems related to metering currents, it is most important that the secondary circuit is not disturbed. Rogowski coils can be used to monitor the secondary current without any disconnection being required. The use of Rogowski coils ensures that no additional impedance is reflected into the secondary circuit.

Electrical Specification (Customized Available)

Power Supply: 12VDC,50mA MAX

Oprating frequncy : 45Hz-600Hz

Rated primary current : 1000A

Rated output voltage: 0.333mv

Current range: 10A-6000A

Accuracy class: 1.0~3.0

Dielectric voltage(Hi-pot): 3000Vrms/2 seconds between sec. / outside

Ambient storage temperature: -40~+70ºC

Ambient operating temperature: -35~+70ºC

rogowski Coil Sensor

Dimensions And Installation Guides

Rogowski Coils size and cable length can be tailor made, integrator is available if needed.

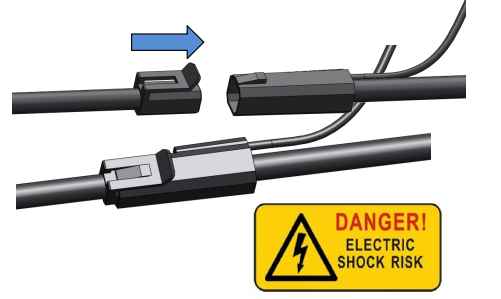

1 Before the installation must ensure that the primary is no current status.
2 Correct mouting of the CT is assured by a distinct sound of a “click”.
3 When Install CTs into circuit box, the circuit box’s main breaker should be turned off.
