Small size, high accuracy and good consistency
Excellent in linearity by using high conductivity permalloy or nanocrystalline
PCB welding and epoxy resin potting

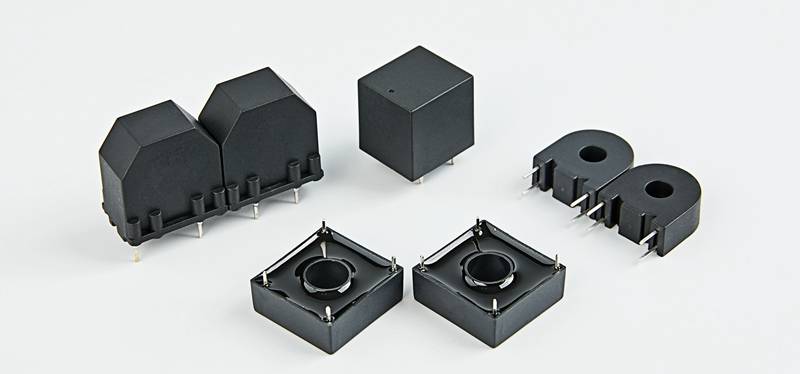

The voltage transformer is used for all kinds of high accuracy instruments, transmitters, energy monitors etc
| Rated Frequency | 50/60 Hz |
|---|---|
| Dielectric Withstanding | 1.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ |
| Operate Temperature | -35-70℃ 0～80%RH |
| Item | Current Ratio | Linearity(%) | Load Resistance(ohm) | Frequency Hz | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|
| Click PN For Details | ID | OD | HT | ||||

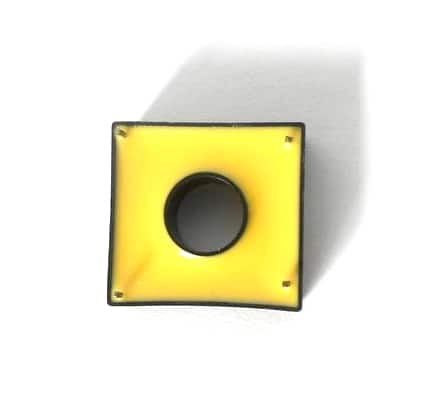

| PT519 | 1mA/1mA | 0.2~0.5 | 100 | 50/60 | 9 | 23*22 | 8.3 |
| PT526 | 2mA/2mA | 0.2~0.5 | 200 | 50/60 | 5.7 | 18.3 | 7.9 |

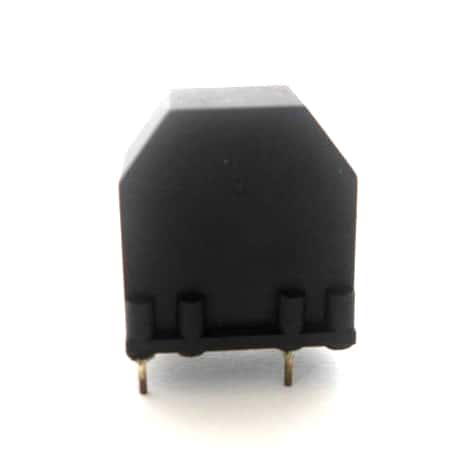

| PT531 | 2mA/2mA | 0.2~0.5 | 200 | 50/60 | - | 25.5 | 21.6 |
